DRE 48X16 Slider Bed Infeed Conveyor

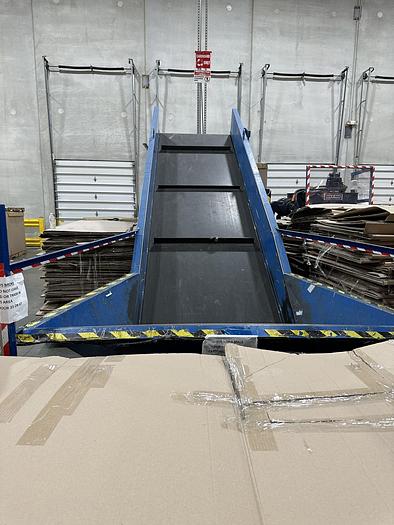

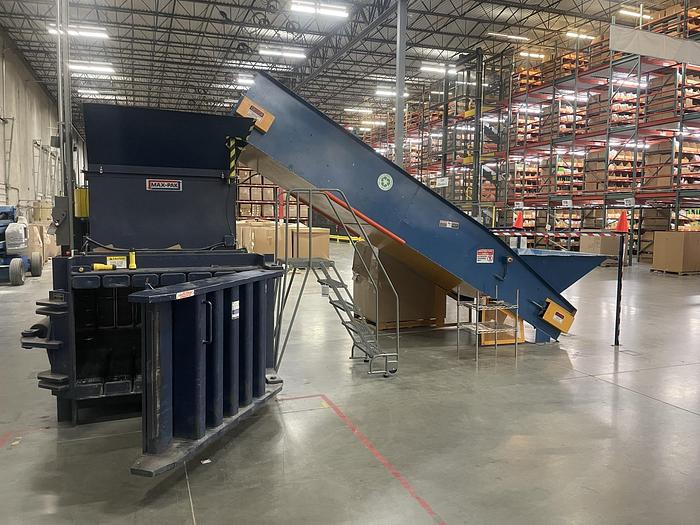

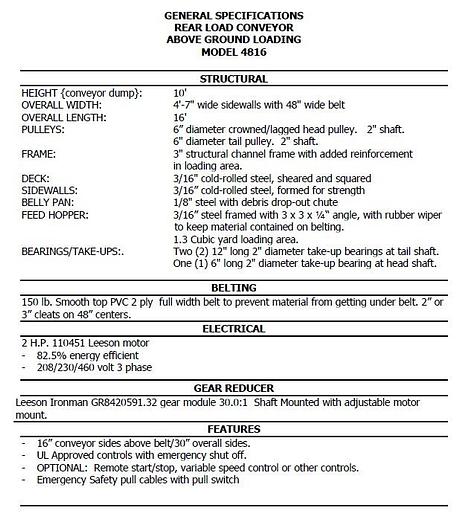

GENERAL SPECIFICATIONS

REAR LOAD CONVEYOR ABOVE GROUND LOADING MODEL 4816

STRUCTURAL

HEIGHT {conveyor dump}:  10'

OVERALL WIDTH:    4'-7" wide sidewalls with 48" wide belt

OVERALL LENGTH:    16'

PULLEYS:       6” diameter crowned/lagged head pulley. 2" shaft.

6" diameter tail pulley. 2" shaft.

FRAME:       3" structural channel frame with added reinforcement in loading area.

DECK:        3/16" cold-rolled steel, sheared and squared

SIDEWALLS:      3/16” cold-rolled steel, formed for strength

BELLY PAN:      1/8" steel with debris drop-out chute

FEED HOPPER:     3/16” steel framed with 3 x 3 x ¼“ angle, with rubber wiper to keep material

contained on belting.

1.3 Cubic yard loading area.

BEARINGS/TAKE-UPS:.   Two (2) 12" long 2" diameter take-up bearings at tail shaft.

One (1) 6" long 2" diameter take-up bearing at head shaft.

BELTING

150 lb. Smooth top PVC 2 ply full width belt to prevent material from getting under belt. 2” or

3” cleats on 48” centers.

2 H.P. 110451 Leeson motor

- 82.5% energy efficient

- 208/230/460 volt 3 phase

ELECTRICAL

GEAR REDUCER

Leeson Ironman GR8420591.32 gear module 30.0:1 Shaft Mounted with adjustable motor

mount.

FEATURES

- 16” conveyor sides above belt/30” overall sides.

- UL Approved controls with emergency shut off.

- OPTIONAL: Remote start/stop, variable speed control or other controls.

- Emergency Safety pull cables with pull switch
