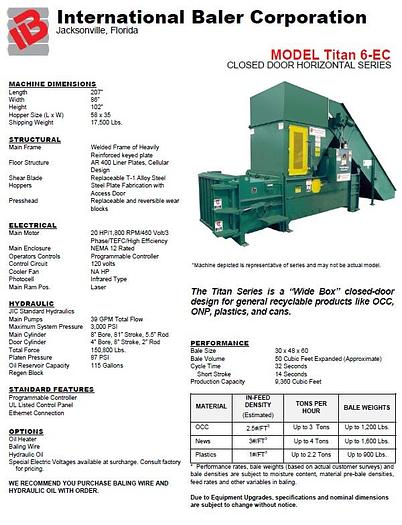

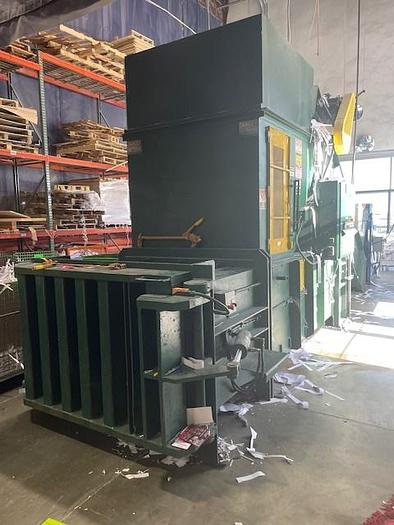

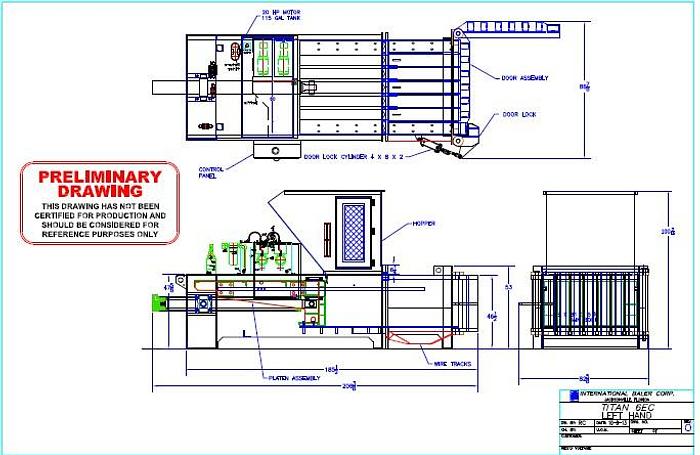

IBC Titan 6-EC Closed Door Baler, IBC 48" Infeed Conveyor, & Pioneer 2K Box Dumper

Ready to work NOW system has been retired due to the company closing their operation. This system comes with a Titan 6-EC closed door baler, Titan 48"x18' infeed conveyor with rubber belt and 3" beefy vulcanized cleats, as well a Pioneer 2,000 lb. rated box dumper with controls. Priced to move and ready to work now. This baler comes with an 8" main cylinder, 20-HP motor, and is made for multiple commodities. OCC capabilities are up to 3 TPH and 1,200 lb. bales, Printers Mix can handle up to 4 TPH at 1,600 lb. bales, and Plastics can handle up to 2.2 TPH and makes up tp 900 lb. bales. This system requires minimal maintenance and performs as it should. Videos of this machine running are available upon request and the system is still under power if you want to inspect it yourself.

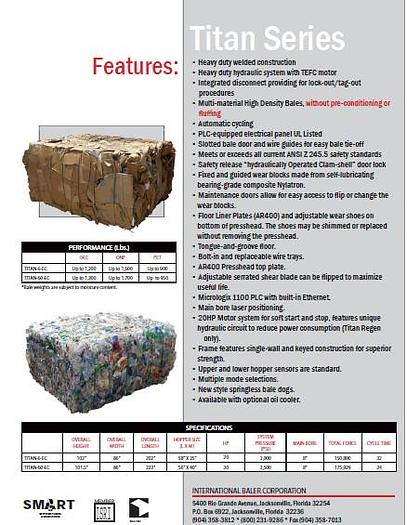

Titan Series Features Include:

• Heavy duty welded construction

• Heavy duty hydraulic system with TEFC motor

• Integrated disconnect providing for lock-out/tag-out procedures

• Multi-material High Density Bales, without pre-conditioning or fluffing

• Automatic cycling

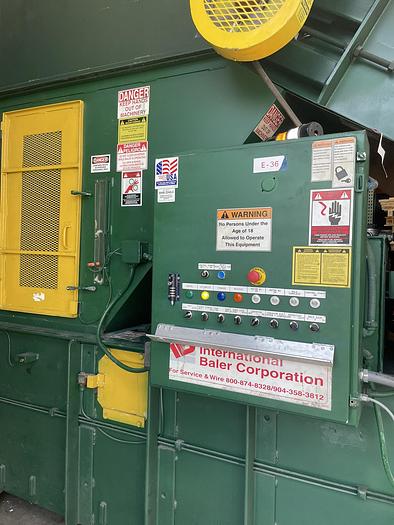

• PLC-equipped electrical panel UL Listed

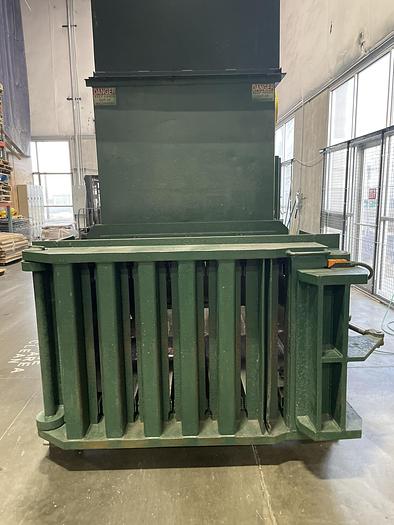

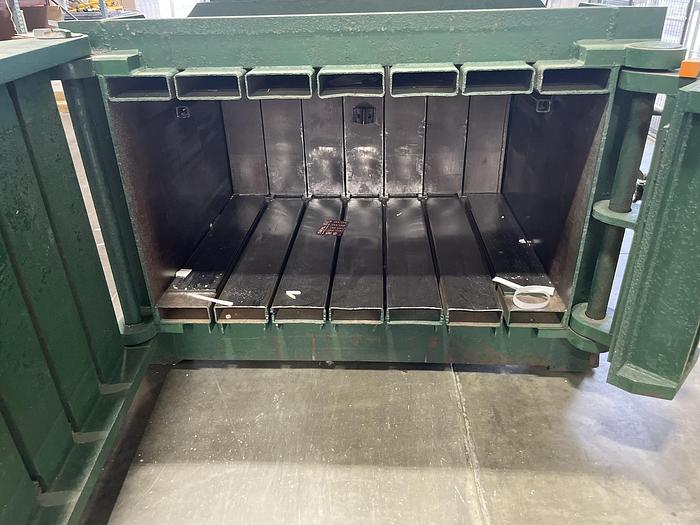

• Slotted bale door and wire guides for easy bale tie-off

• Meets or exceeds all current ANSI Z 245.5 safety standards

• Safety release “hydraulically Operated Clam-shell” door lock

• Fixed and guided wear blocks made from self-lubricating bearing-grade composite Nylatron.

• Maintenance doors allow for easy access to flip or change the wear blocks.

• Floor Liner Plates (AR400) and adjustable wear shoes on bottom of presshead. The shoes may be

shimmed or replaced without removing the presshead.

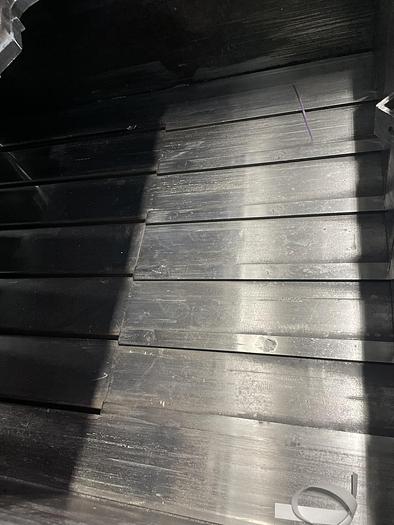

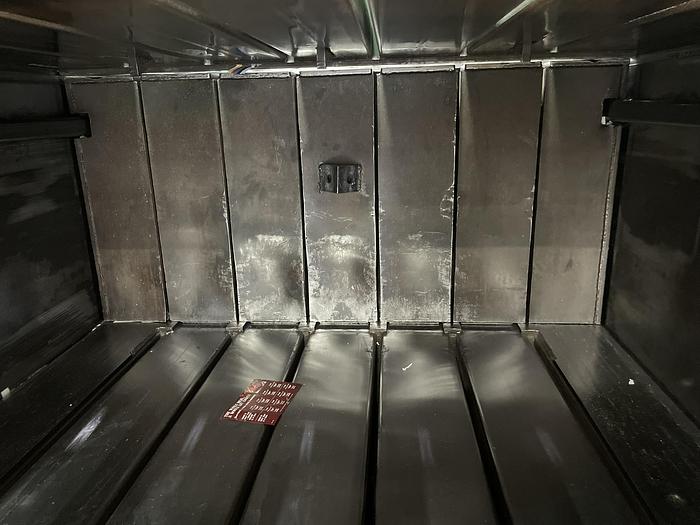

• Tongue-and-groove floor.

• Bolt-in and replaceable wire trays.

• AR400 Presshead top plate.

• Adjustable serrated shear blade can be flipped to maximize useful life.

• Micrologix 1100 PLC with built-in Ethernet.

• Main bore laser positioning.

• 20HP Motor system for soft start and stop, features unique hydraulic circuit to reduce power

consumption (Titan Regen only).

• Frame features single-wall and keyed construction for superior strength.

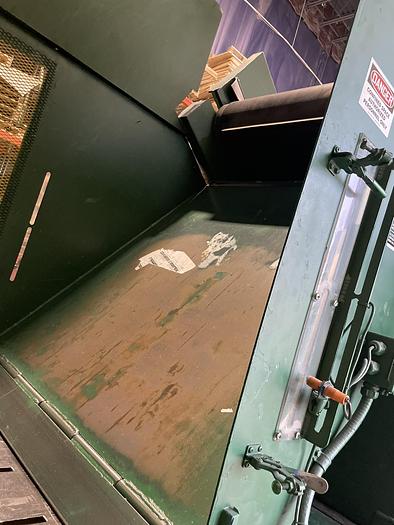

• Upper and lower hopper sensors are standard.

• Multiple mode selections.

• New style springless bale dogs.
