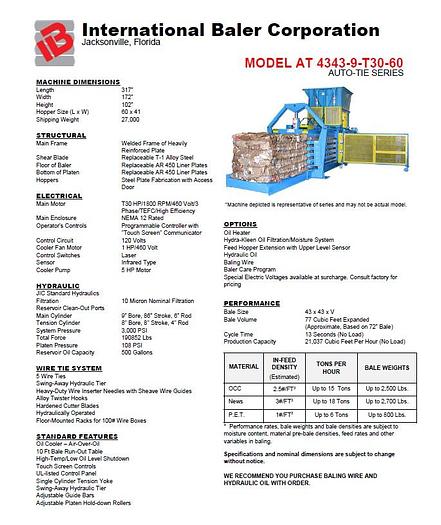

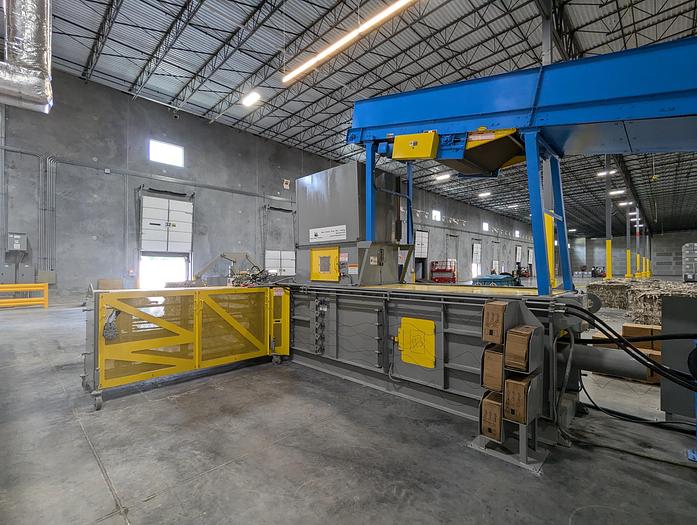

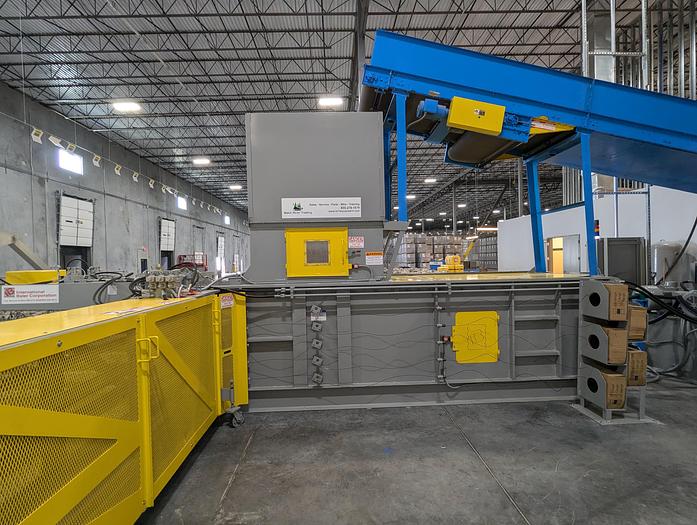

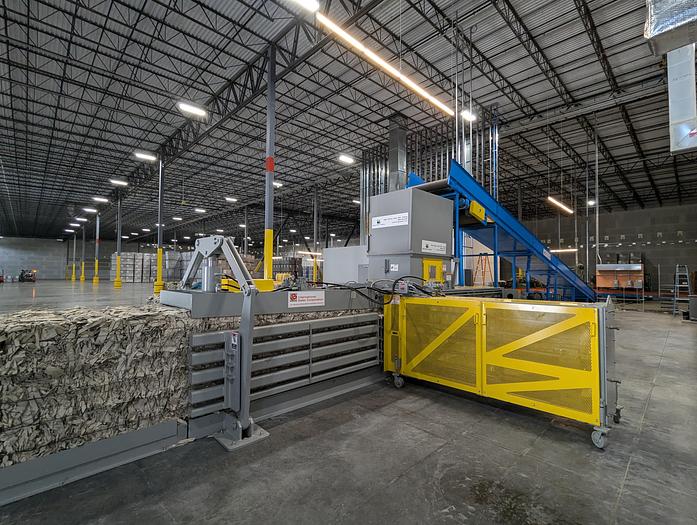

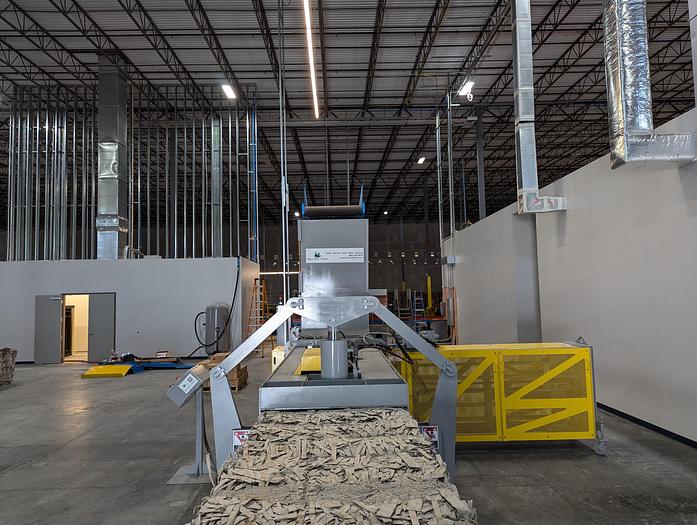

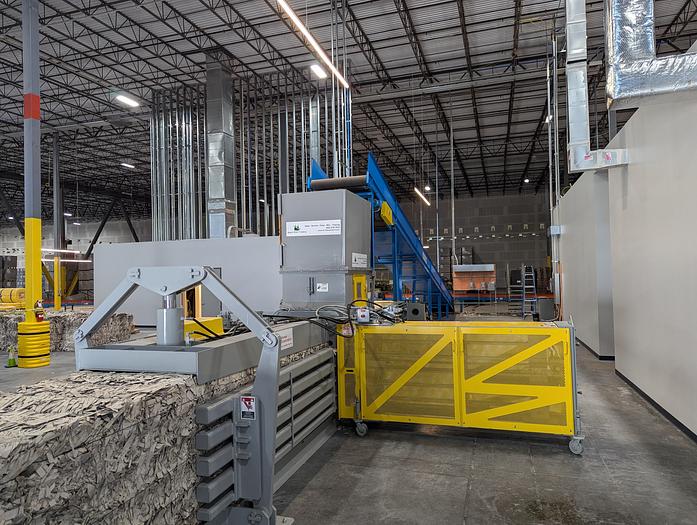

IBC AT 4343-9-T30-60 Auto-Tie Baler - REDUCED

This unit is reconditioned and ready to ship now. Comes with a 6 month warranty.

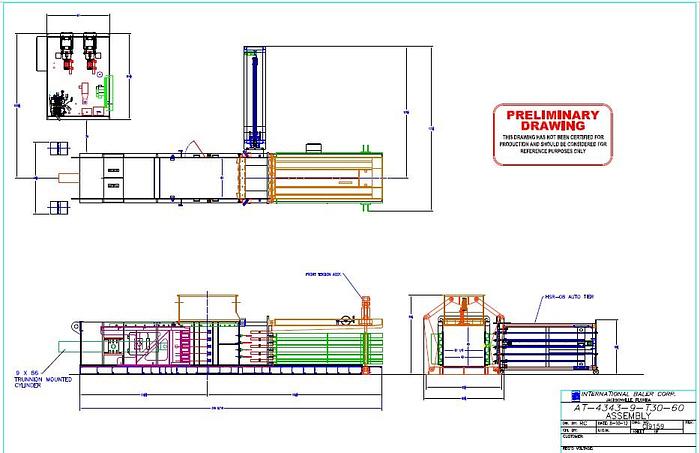

MACHINE DIMENSIONS

Length      317”

Width      172”

Height      102”

Hopper Size (L x W)   60 x 41

Shipping Weight    27,000

STRUCTURAL

Main Frame     Welded Frame of Heavily Reinforced Plate

Shear Blade     Replaceable T-1 Alloy Steel

Floor of Baler     Replaceable AR 450 Liner Plates

Bottom of Platen    Replaceable AR 450 Liner Plates

Hoppers      Steel Plate Fabrication with Access Door

ELECTRICAL

Main Motor     T30 HP/1800 RPM/460 Volt/3 Phase/TEFC/High Efficiency

Main Enclosure    NEMA 12 Rated

Operator's Controls   Programmable Controller with "Touch Screen" Communicator

Control Circuit    120 Volts

Cooler Fan Motor    1 HP/460 Volt

Control Switches    Laser

Sensor      Infrared Type

Cooler Pump     5 HP Motor

HYDRAULIC

JIC Standard Hydraulics

Filtration      10 Micron Nominal Filtration Reservoir Clean-Out Ports

Main Cylinder     9” Bore, 86” Stroke, 6” Rod

Tension Cylinder    8" Bore, 8" Stroke, 4" Rod

System Pressure    3,000 PSI

Total Force     190852 Lbs

Platen Pressure    108 PSI

Reservoir Oil Capacity   500 Gallons

WIRE TIE SYSTEM

5 Wire Ties

Swing-Away Hydraulic Tier

Heavy-Duty Wire Inserter Needles with Sheave Wire Guides Alloy Twister Hooks

Hardened Cutter Blades Hydraulically Operated

Floor-Mounted Racks for 100# Wire Boxes

STANDARD FEATURES

Oil Cooler – Air-Over-Oil 10 Ft Bale Run-Out Table

High-Temp/Low Oil Level Shutdown Touch Screen Controls

UL-listed Control Panel Single Cylinder Tension Yoke Swing-Away Hydraulic Tier Adjustable Guide Bars

Adjustable Platen Hold-down Rollers

Performance

Bale Size     43 x 43 x V

Bale Volume     77 Cubic Feet Expanded (Approximate, Based on 72” Bale)

Cycle Time     13 Seconds (No Load)

Production Capacity   21,037 Cubic Feet Per Hour (No Load)

OCC: Up to 15 tons per hour with 2,500 lb. bale weight
